Stone crushing plants are used to break down stones of different sizes into smaller pieces or dust in order to make them more usable for various purposes. These plants are usually equipped with a range of crushers, screens, and conveyors to help process the material into a finished product. In this article, we will discuss the basic flowchart for stone crushing plants and how it works.

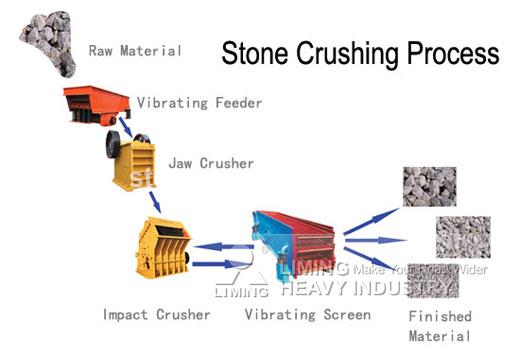

Stone Crushing Flow Chart: A Guide to Understanding the Process

The first step in the stone crushing process is the primary crushing of the raw material. This is typically done with gyratory or jaw crushers, which break the material down into a manageable size. The material is then fed into a vibrating screen, which separates it into different sizes based on its particle size. The larger pieces are sent back to the crusher for further processing, while the smaller pieces are sent to a conveyor belt for transport to the next stage.

Once the material has been separated into different sizes, it is ready for secondary crushing. This stage typically involves the use of cone or impact crushers, which further reduce the size of the material. The material is again passed through a vibrating screen to separate it into different sizes, with the larger pieces sent back for further processing and the smaller pieces sent to a conveyor belt for transport.

The final stage of the stone crushing process involves the use of tertiary crushers. These crushers are designed to break down the material even further, into even smaller pieces or dust. Once the material has been processed by the tertiary crusher, it is then passed through a final vibrating screen to separate it into different sizes. The final product is then transported to its final destination, such as a construction site or manufacturing facility.

To wrap up, stone crushing plants are complex systems that involve a range of equipment and processes. Understanding the basic flowchart for stone crushing plants can help you better understand the process and how it works. By breaking down the process into its individual stages, you can gain a greater appreciation for the complexity of the system and the importance of each stage in producing a high-quality finished product.
