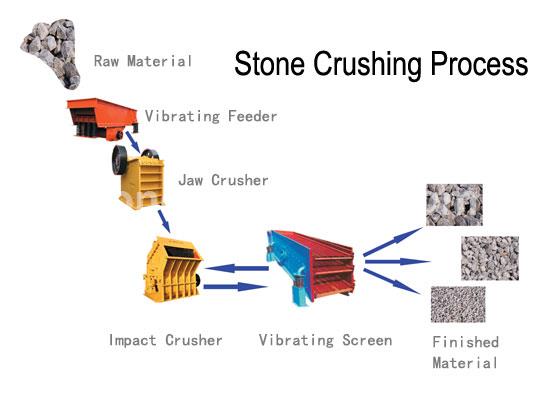

Stone crushing plant is a common and essential equipment that is used in the construction industry. Its main purpose is to process different stones into smaller sizes that can be used for various purposes such as roads, bridges, buildings, and many more. To ensure the proper functioning of this equipment, a process flow chart is required to guide the operation. In this article, we will discuss the process flow chart for stone crushing plant.

The first stage of the crushing process is the primary crushing. In this stage, the raw materials are fed into the jaw crusher which has a high pressure to force the materials into the crushing chamber. The jaw crusher reduces large-sized rocks by the compression force. The size of the output materials is determined by the gap between the mantle and the concave within the crushing chamber.

The second stage is the secondary crushing. The output from the primary crusher is further processed by the secondary crusher which can be either cone crusher or impact crusher. Cone crusher is preferred for its size reduction capability, while impact crusher is better suited for materials with high hardness. The secondary crusher further reduces the size of the materials to the required size for the subsequent processing.

The third stage is the tertiary crushing which is optional depending on the desired output size. In this stage, the output size is further reduced to the required size by using a tertiary crusher such as vertical shaft impact crusher or horizontal impact crusher. These crushers produce a cubical output shape that is required for some construction projects.

The fourth stage is the screening process. The output materials from the crushers are transported to a screening plant where they are separated into different sizes. The screening process ensures that the output size meets the required specifications. The screening plant is equipped with different types of screens such as vibrating screens and inclined screens that separate the materials based on their size.

The fifth and the final stage is the storage and dispatch. The output materials are stored in the storage area until they are dispatched to the construction site. The dispatch process involves the loading of the screened materials onto trucks or conveyor belts that transport the materials to their destination.

To summarize, a well-designed process flow chart for stone crushing plant ensures smooth operation and minimum downtime. The process flow chart should be followed by the operators to ensure that all the steps are executed correctly and efficiently. Some of the benefits of following a process flow chart include reduced operation costs, increased efficiency, and improved productivity. The use of a process flow chart can prevent operational errors and delays, which in turn lead to reduced production costs and increased profits.
