Impact crushers are versatile crushing machines that are used to reduce the size of any material like rock, ore, or concrete into smaller pieces. They operate on the principle of force reduction where the force is applied to the material to crush it into smaller pieces. An impact crusher has a rotor that spins rapidly to generate kinetic energy along with the use of centrifugal force to break the material.

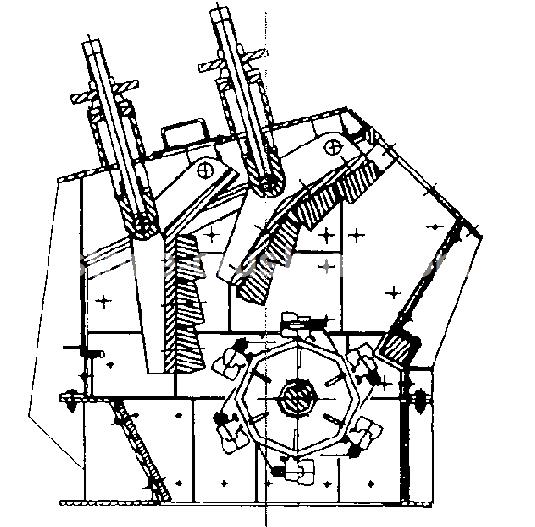

The working principle of an impact crusher is quite simple. It involves a horizontal shaft impactor, which is a high-speed rotating drum containing bars of steel or hammers. The material to be crushed is fed into the crusher via a feed hopper and it comes into contact with the rotor spinning at high speeds. As the material collides with the bars, it is broken down into smaller pieces and propelled forward. The bars or hammers then strike and crush the material, which is thrown against the breaker plates comminuted and discharged through the discharge opening at the bottom.
Impact crushers offer several benefits over other crushing machines. They include:
1. High Reduction Ratio: Impact crushers provide a high reduction ratio, which means that the size of the material can be reduced significantly with just one pass through the crusher.
2. Cost Effective: Compared to other types of crushers, impact crushers are relatively inexpensive to operate and maintain.
3. Versatility: Impact crushers are versatile and can be used to crush various types of materials, including minerals, ores, and rocks.
4. Easy Maintenance: Maintenance is relatively easy on impact crushers since they have fewer moving parts. They also have easy-to-replace wear parts, such as blow bars and impact plates.
5. Effective Screening: Most impact crushers come with a screening deck to ensure that the material is well-sorted before it enters the crusher. This improves the efficiency of the crusher and reduces the chances of oversized material entering the crusher, which can cause damage.
While impact crushers are generally favorable, they do have a few disadvantages. These include:
1. Energy Consumption: Impact crushers require more energy to operate than other crushing machines.
2. High Wear and Tear: Impact crushers have a high wear rate, meaning that the blow bars and impact plates need to be replaced regularly, adding to operating costs.
3. Noise: Impact crushers can be quite noisy when they are in operation, especially when crushing hard rocks.
4. Dust Generation: The material being crushed by the impact crusher can produce dust, which can be harmful to the workers and the environment, so proper measures must be taken to control the dust emissions.
Impact crushers are useful crushing machines in various industries, including mining, construction, and recycling. They offer a high reduction ratio, several advantages over other types of crushers, and are cost-effective. However, they do have a few disadvantages, such as high wear and tear, high noise levels, and energy consumption. Therefore, it is important to consider these factors when choosing an impact crusher for your business.
