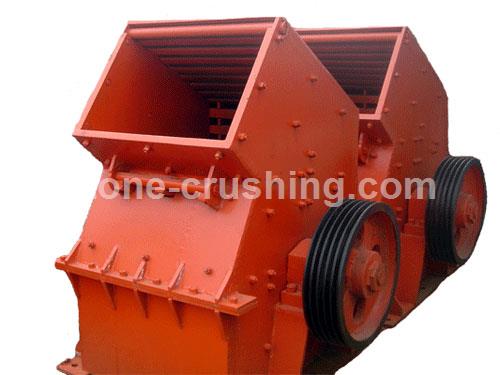

Hammer crushers are commonly used in the cement industry to crush materials such as limestone, coal, and gypsum. The design of a hammer crusher essentially consists of a rotating shaft with a free-swinging hammer, which is adapted to the specific throughput requirements of the application.

The primary factor in the design of a hammer crusher is the size of the feed material to be crushed. The machine usually accepts feed material up to 350mm in size, and the output particle size is typically between 20-25mm. The choice of crusher design depends on the material hardness, the desired particle size, and the throughput requirements.

To achieve efficient crushing, hammer crushers are designed with a high reduction ratio, which provides a high capacity for materials to be crushed. The crusher's structure is designed to withstand extreme conditions, ensuring a long service life under heavy usage.

The hammer crusher rotor is the most important component of the hammer crusher. Rotor consists of a shaft, a rotor disc (hammers are installed on the disc), and a sleeve. The sleeve has several holes to allow the corresponding hammers to be placed in the correct position during installation and maintenance. The rotor disc is welded with high-quality steel plates to provide the necessary rigidity and strength.

In addition to the rotor, the housing is an equally important component of a hammer crusher. The housing is designed to contain the material being crushed and to protect the internal components of the crusher from damage caused by impact and abrasive wear. The housing also serves as a sound buffer, reducing noise pollution during operation.

Another essential part of the hammer crusher design is the grate assembly. The grate reduces particle size by separating and directing oversized particles to the crusher's rotor chamber for further crushing. The grate design is dependent on the specific application and the particle size distribution of the feed material.

Hammer crushers also come with various safety features such as a hydraulic hammer bolt-out system that reduces potential damage to the machine in case of a jammed rotor. The spring-loaded release mechanism enables the hammer assembly to swing freely in case of an overload or unscheduled maintenance. Hammer crushers also come equipped with control systems that ensure smooth and trouble-free operation.

In summary, the design of a hammer crusher is crucial in determining its operational efficiency and durability in the cement industry. Properly designed hammer crushers can provide reliable and long-lasting performance, reducing downtime and maintenance costs. With proper installation and maintenance, hammer crushers can provide a high level of productivity, ensuring maximum profitability for cement plant operators.
