As the name suggests, a general arrangement stone crusher plant can be described as a machine designed to crush stone into small pieces or dust. It is an essential machinery for various construction duties such as building roads, highways, bridges, buildings, and other industrial applications. Before delving into the details of a general arrangement stone crusher plant, let us first understand what it entails.

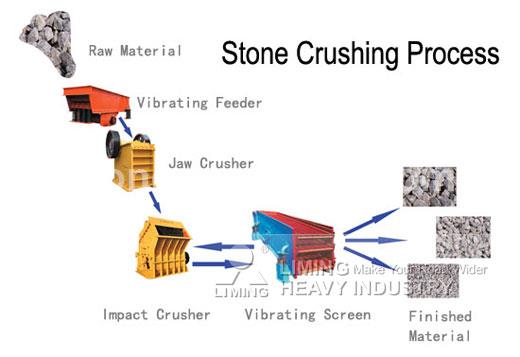

A general arrangement stone crusher plant includes several types of designs that enable the proper functioning of the crusher. Depending on the manufacturer’s recommendation, the plant layout can have different configurations such as Primary, Secondary, and Tertiary crushers. The plant layout will depend on the type of stone to be crushed as well as the final product size requirements. The basic general arrangement of the crusher plant involves the following steps:

1. Primary Crushing: The large stones are fed into the primary crusher through a Vibrating Grizzly Feeder (VGF). The feeder separates the stones and feeds only the larger pieces into the crusher. The purpose of the primary crusher is to reduce the size of the rocks.

2. Secondary Crushing: The primary crushed rocks are then conveyed to the secondary crusher for further size reduction. The secondary crusher can either be a cone crusher or an impact crusher, depending on the requirements.

3. Screen: Once the rocks have been crushed and sized, they are then conveyed to a screen where they are sorted into different sizes. The aim of using a screen is to ensure the final product is of the required size.

4. Conveyor: The final product is then conveyed to the storage area by a conveyor belt. The conveyor belt generally runs through several rollers for efficient operation. The rollers help to minimize friction and therefore reduce the wear and tear on the belt.

Thus, a general arrangement stone crusher plant plays a crucial role in a wide range of construction applications. Its primary purpose is to crush stones into small sized pieces or dust, so they can be used in various construction projects. The plant consists of several machinery such as a Vibrating Grizzly Feeder, Primary Crusher, Secondary Crusher, Screen, and a Conveyor, among others. In selecting a crusher plant, different factors such as the type of stone, final product size requirements, and the plant’s capacity are essential considerations. Therefore, proper planning is crucial to ensure that the crusher plant layout is appropriate and caters to your construction needs.
