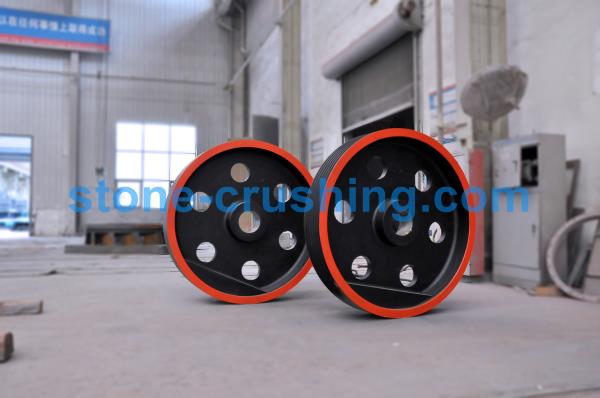

A flywheel is a mechanical device specifically designed to use the conservation of angular momentum to store rotational energy; a process known as inertia. This mechanical device is used in the jaw crusher to aid in the movement of the swing jaw assembly. The design of the flywheel in the jaw crusher is very important. It plays a crucial role in the operation of the device as a whole.

When designing a flywheel, we must consider the size and weight of the flywheel itself. In essence, the flywheel jaw crusher is designed to evenly feed the jaw crusher, thereby ensuring the crushing cavity evenly filled. The flywheel store energy at the peak of the equipment motion to facilitate the transfer of stored energy into the required motion of the crusher.

The size and weight of the flywheel are essential factors for the jaw crusher. In the design stage, we determined the parameters, such as the dynamic load on the flywheel, capacity, and rotational speed of the jaw crusher. It is important to strike a balance between energy storage capacity and rotational inertia. If the flywheel is too large, it will cause an increase in energy consumption, generate excessive loss, and reduce the output of the equipment. On the other hand, if the flywheel is too small, it will not be able to store enough energy and correspondingly reduce the production capacity of the jaw crusher.

The diameter of the flywheel determines the velocity at which it rotates. The size of the flywheel affects the overall horsepower requirements and increases the stress on the machine's components. It is recommended that the diameter of the flywheel should be about 1.5 times the total length of the maximum belt-pulley groove.

The weight of the flywheel affects the performance and stability of the equipment. In general, the greater the weight of the flywheel, the more stable the function of the jaw crusher. However, too much weight can also cause inefficient crushing and excessive wear on the machine parts. Therefore, it is necessary to determine the optimal weight of the flywheel for the jaw crusher according to the actual production requirements.

In addition to the size and weight, other factors such as the eccentric shaft rotation speed, the material's hardness, and the jaw crusher's design parameters also affect the size and performance of the flywheel. The flywheel should be designed to work in conjunction with the eccentric shaft and the toggle plate so that the jaw crusher can function efficiently.

The flywheel in the jaw crusher is used to store the energy of the moving jaw, so that the crankshaft can operate normally. In idle, the energy of the flywheel drives the eccentric shaft to make the moving jaw reciprocate in a predetermined motion, thus generating the crushing force required for the material and discharging it through the discharge opening.

All in all, the size and weight of the flywheel are crucial elements in jaw crusher design. Choosing the correct flywheel dimensions can help improve the performance of the machine, aiding in optimal crushing and prolonging the life of the equipment. Properly designed flywheel helps to balance the inertia and increase the overall efficiency of the jaw crusher.
