Crushed stone mining is a crucial part of the construction industry, and it involves the extraction of useful minerals and rock fragments from natural deposits. To carry out this process, a robust and efficient mining plant is required. In this article, we will take a closer look at the diagram of a crushed stone mining plant.

The diagram of a crushed stone mining plant includes several stages, each with its customized equipment and workflows. The first stage is the extraction of the raw material from the earth's crust. This stage involves the use of heavy machinery such as bulldozers, excavators, and drill rigs, which drill into the ground to extract the mineral and rock fragments.

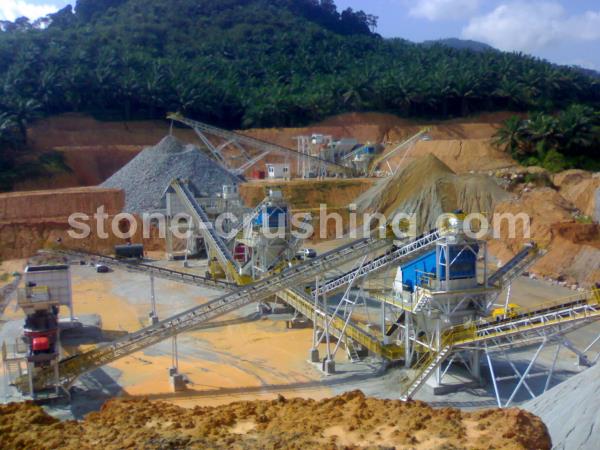

Once the raw material has been extracted, it is then transported to the next stage, which involves crushing the material into smaller sizes. A crushing plant is usually located near the mining site and comprises a primary crusher, a secondary crusher, and a vibrating screen. The primary crusher can either be a jaw crusher, a gyratory crusher, or an impact crusher, depending on the type of rock and the desired product size.

After the material has been crushed, it is then sorted and screened to remove any impurities such as dirt and debris. The sorted materials are then transported to the next stage, which involves washing and scrubbing the crushed stone. The washing process ensures that the final product is clean and free from any contaminants that may affect its quality.

The washed and scrubbed crushed stone is then dried, and the final stage involves storing it and transporting it to the end-users, such as construction contractors and road builders. The transportation process is usually done by trucks, trains, or barges, depending on the location and quantity of the crushed stone.

Hence, the diagram of a crushed stone mining plant illustrates how important it is to have a well-designed process flow that makes use of the best equipment and workflows to extract and process the raw material into useful products. By doing so, the mining industry can provide high-quality construction materials that are critical for building infrastructure and promoting economic growth.
