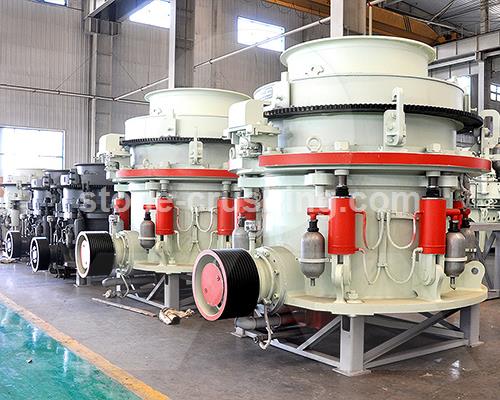

A conic crusher is a machine primarily used to crush rocks or minerals into smaller sizes. The machine has several main components that perform specific functions in the crushing process. Understanding these components is essential to the efficient and safe operation of the crusher.

The primary components of a conic crusher include the main frame, eccentric assembly, bowl liner, mantle liner, adjusting device, and drive unit. Let's examine each of them in detail.

The main frame is the central supporting structure of the crusher. It provides the necessary rigidity to withstand the enormous forces generated during the crushing process. The main frame is usually made of durable steel and is responsible for the proper alignment of other components.

The eccentric assembly is the rotating component of the conic crusher. It consists of a shaft, an eccentric sleeve, and a counterweight. The eccentric assembly generates the crushing force by rotating the mantle, which is connected to the eccentric sleeve. The counterweight balances the centrifugal force generated during rotation, ensuring smooth and stable operation.

The bowl liner is the stationary component of the crusher. It is located at the bottom of the crusher and is shaped like a bowl. The liner is made of durable steel and protects the main frame from wear and tear. The feed material enters the crusher from the top and falls on the bowl liner, where it is crushed by the rotating mantle.

The mantle liner is the moving component of the crusher. It is located inside the bowl liner and is attached to the eccentric assembly. The mantle liner is made of high-quality steel and is responsible for crushing the feed material. As the eccentric assembly rotates, the mantle liner compresses and crushes the rocks or minerals.

The adjusting device is used to control the gap between the bowl liner and the mantle liner. It determines the size of the crushed material and is crucial for maintaining the optimal performance of the crusher. The adjusting device is usually located at the bottom of the crusher and is operated by hydraulic cylinders.

The drive unit is responsible for providing the power to operate the crusher. It consists of an electric motor, a gearbox, and a set of pulleys and belts. The motor provides the necessary torque to rotate the eccentric assembly, which drives the mantle liner.

In brief, understanding the main components of a conic crusher is essential to its efficient and safe operation. The main components include the main frame, eccentric assembly, bowl liner, mantle liner, adjusting device, and drive unit. Ensuring that these components are properly maintained and functioning optimally will increase the lifespan of the crusher and maintain its output quality.
