A rock crusher is a machine that is used to crush large rocks into smaller pieces or gravel for construction purposes. It can be used to break down rocks into smaller pieces for easy transportation or to create gravel for use in construction projects.

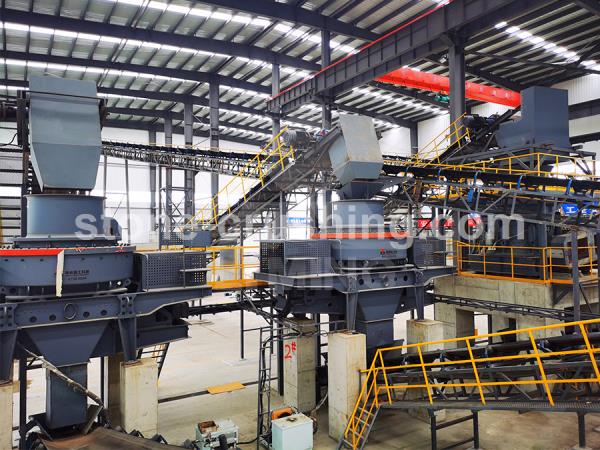

The setup of a rock crusher depends on the type of rock being crushed and the desired end product. Generally, a primary crusher is used to break down larger rocks into smaller, more manageable pieces. This primary crusher can be either a jaw crusher or gyratory crusher.

Once the primary crusher has broken the larger rocks down to a manageable size, it is then transported to a secondary crusher. The secondary crusher can be either a cone crusher or impact crusher, depending on the desired end product.

The cone crusher works by using an eccentrically rotating spindle that gyrates around the crushing chamber. As the rock enters the chamber, it is crushed between the mantle and the bowl liner. The crushed material is then discharged through the bottom of the chamber.

The impact crusher uses a series of hammers that spin rapidly, striking the rock and breaking it into smaller pieces. The crushed material is then discharged through a grate at the bottom of the crusher.

Once the rock has been crushed and the desired end product has been achieved, it is then transported to its final destination. This can be done by using a conveyor belt system or by loading the material onto trucks for transport.

Overall, the setup of a rock crusher is a detailed process that requires careful planning and execution. It is important to consider the type of rock being crushed, the desired end product, and the transportation requirements when designing a rock crusher setup.

In summary, a rock crusher is a machine used to break down large rocks into smaller, more manageable pieces or gravel for use in construction projects. The type of rock being crushed and the desired end product will determine the type of crusher used and the setup process. Proper planning and execution are important to ensure the set up is efficient and effective.
