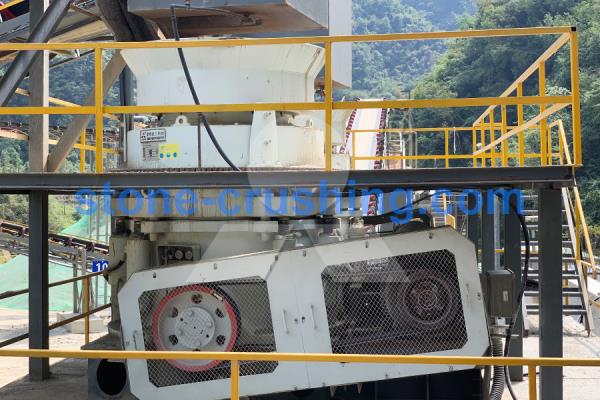

Cone crushers are widely utilized in the mining and aggregate industries for their ability to crush hard and abrasive materials effectively. To ensure optimal performance, it is crucial to properly adjust cone crushers. In this article, we will explore the step-by-step process of adjusting cone crushers to achieve the desired product size and maximize production efficiency.

1. Understand the Basic Components:

Before delving into the adjustment process, it is essential to familiarize yourself with the basic components of a cone crusher. Typically, a cone crusher consists of a concave surface (mantle), a fixed crushing chamber, a rotating eccentric shaft, and an adjustable discharge opening.

2. Determine the Desired Product Size:

Begin by determining the desired product size that you aim to achieve. This can be done by analyzing the specific requirements of your project or consulting with experts in the field. The product size will dictate the appropriate adjustment settings for the cone crusher.

3. Measure the Closed-Side Setting (CSS):

The closed-side setting refers to the shortest distance between the mantle and concave at the bottom of the crushing chamber. To measure the CSS accurately, position a lead pellet or equivalent small object on the bottom of the crushing chamber and close the crusher's gap. Use a measuring tape or a ruler to determine the distance between the mantle and the concave. This measurement determines the CSS.

4. Adjust the CSS:

To adjust the CSS, turn the adjustment nut clockwise (tighten) to decrease the CSS or counterclockwise (loosen) to increase it. It's crucial to make small adjustments and continually measure the CSS until the desired product size is achieved. Remember to refer to the manufacturer's guidelines for the recommended CSS range.

5. Verify Symmetrical Discharge Opening:

After adjusting the CSS, it is essential to ensure that the discharge opening remains symmetrical. Utilize a feeler gauge to measure the gap between the concave and mantle on both sides of the crushing chamber. If any inconsistencies are detected, adjust the CSS accordingly until a symmetrical discharge opening is obtained.

6. Monitor and Optimize:

Once the cone crusher has been adjusted and the desired product size has been achieved, it is vital to monitor and optimize its performance regularly. This includes regularly measuring the CSS, checking the crusher's wear parts, and ensuring proper lubrication. Additionally, monitor the crushing chamber for any blockages or material build-up that might affect the crusher's efficiency.

7. Seek Expert Advice:

If you encounter difficulties during the adjustment process or notice any issues with your cone crusher's performance, do not hesitate to seek advice from a professional. Consulting with experts or the manufacturer's technical support can help troubleshoot any problems and ensure the optimum performance of your cone crusher.

Adjusting a cone crusher is a crucial process to achieve the desired product size and maximize production efficiency. By following the steps outlined in this guide, you can ensure that your cone crusher operates at its peak performance. Regularly monitoring and optimizing the crusher's settings will help you avoid costly downtime, enhance product quality, and prolong the lifespan of your equipment.
