Iron ore mining involves the process of extracting the valuable mineral from the earth's crust. The process involves extracting the mineral by breaking up large rocks and passing them through a series of crushers until the desired material is obtained. A flow chart of iron ore crushing is essential for a successful mining operation.

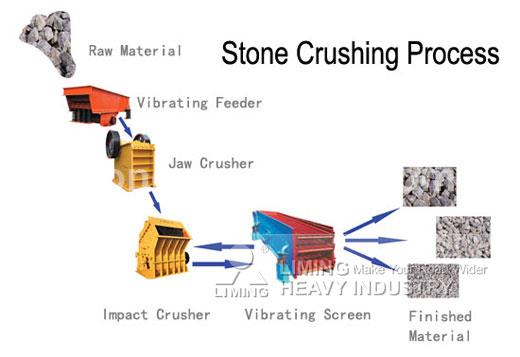

The flow chart of iron ore crusher starts with the mining of raw materials from the earth's crust. The extracted materials are then processed through crushing, screening, and grinding mechanisms. This process is essential to extract the iron ore from the rock, which is typically mixed with other minerals and impurities. Furthermore, the crushing process reduces the size of the ore particles, making it easier to transport and process in later stages.

Once the rock has been crushed, it passes through several stages of processing, each designed to extract as much iron ore as possible. The iron ore crushing process typically involves several primary and secondary crushers to achieve the desired size reduction.

After the primary crushing stage, the crushed material undergoes secondary crushing. The process uses cone or hammer mills as secondary crushers, which reduces the size of the ore to a finer and more manageable size.

The crushed ore then undergoes screening to separate it from the fine particles that do not contain valuable minerals. The separation process typically involves a vibrating screen, where the crushed ore passes through to separate it from the fines. The screen size varies depending on the desired end product specification.

The final step in the flow chart of iron ore crushing is grinding. The grinding process is done to achieve a finer size reduction of the mineral, which is essential to extract the valuable iron ore. The grinding process typically involves a ball mill or a rod mill, depending on the end product specification.

In summary, the flow chart of iron ore crushing is crucial for understanding the entire process of extracting valuable minerals from the earth's crust. The process involves breaking down of the rocks, crushing, screening, and grinding to extract the maximum amount of iron ore. By understanding the flow chart, mining companies can optimize their operations and increase efficiency, leading to higher profits.
