Jaw crushers are one of the most commonly used crushers in the world. They are used to reduce the size of large rocks into smaller rocks, gravel, or rock dust. A jaw crusher works by compressing the material in between two plates, known as the jaw plates. The movable jaw moves back and forth against the fixed jaw, crushing the material as it moves.

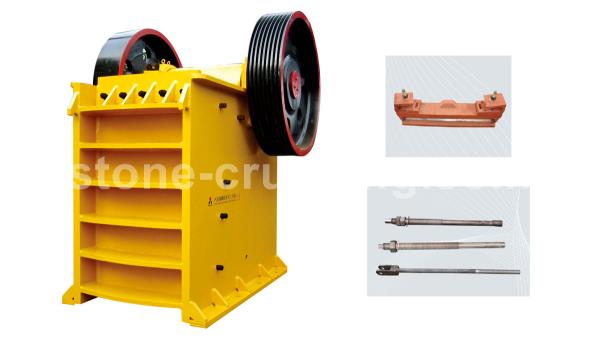

The main components of a jaw crusher include the frame, eccentric shaft, toggle plate, flywheel, movable jaw, stationary jaw, and tension rod. Each component serves a specific purpose and is essential to the overall functioning of the crusher.

The frame is the main structural component of the crusher. It supports all of the other components and houses the eccentric shaft, flywheel, and toggle plates. The frame is typically made of cast iron or steel and is designed to withstand the stresses and strains of crushing.

The eccentric shaft is a shaft that runs through the center of the frame and is supported by bearings at the top and bottom. It rotates and causes the movable jaw to move back and forth, crushing the material against the stationary jaw.

The toggle plate is a small piece of metal that connects the movable jaw to the frame. It allows the jaw to move up and down slightly, which increases the crushing force on the material.

The flywheel is a heavy metal disk that connects to the eccentric shaft. It stores energy and helps to smooth out the crusher's operation. It also helps to reduce the strain on the motor by providing a constant load.

The movable jaw is the part of the crusher that moves up and down as the eccentric shaft rotates. It is attached to the toggle plate and crushes the material against the stationary jaw.

The stationary jaw is the fixed part of the crusher that holds the material in place while the movable jaw crushes it. It is made of manganese steel and is typically replaceable.

The tension rod is a small rod that connects the movable jaw to the frame. It provides additional support and helps to maintain proper alignment of the jaw plates.

Therefore, the jaw crusher is a complex machine with many wearable parts that require maintenance in order to ensure its longevity. It is important to keep all components in good working order to maximize the crusher's performance and minimize downtime. By understanding each component's function, operators can better diagnose and troubleshoot issues that arise during operation. Proper maintenance and care will help extend the life of the crusher and maintain its productivity.
