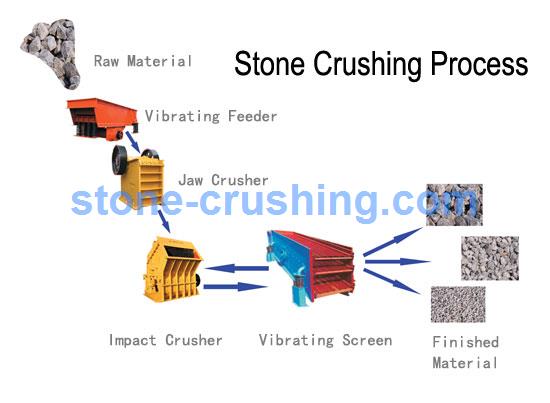

When it comes to quarry operations, it's important to have a detailed flow chart of the whole process. This is essential because it helps you visualize the quarry crushing plant's workflow and understand the rock crushing process fully. In this article, we will discuss the various stages and components of a quarry crushing plant and provide you with a comprehensive flow chart.

The quarry crushing plant typically consists of several components, including:

1. Primary Crusher: The primary crusher is responsible for reducing the size of the blasted rock into smaller pieces. It is usually a jaw crusher or a gyratory crusher that can handle large rocks up to 1 meter in diameter. The primary crusher is the first stage of the crushing process.

2. Secondary Crusher: Once the rock passes through the primary crusher, it is further reduced in size by the secondary crusher. This crusher is typically a cone crusher or an impact crusher, designed for breaking down the smaller-sized rocks. The secondary crusher helps in producing the desired shape and size of the final product.

3. Tertiary Crusher: Some quarry crushing plants also have a tertiary crusher, which further reduces the size of the crushed material. The tertiary crusher is often a vertical shaft impact (VSI) crusher that produces precisely shaped cubical end products.

4. Vibrating Screen: After the crushers, the crushed material passes through a vibrating screen. The screen separates the aggregates according to their sizes. It ensures that only the suitable-sized materials proceed further in the process, while the oversized materials are returned to the crusher for further crushing.

5. Conveyor System: A conveyor system is an integral part of any quarry crushing plant. It transports the crushed materials from one stage to another, ensuring a smooth flow of production. The conveyor system also helps in stockpiling the finished products and transferring them to trucks or other transportation means.

6. Stockpiling: The finished products that meet the desired specifications are stockpiled for later use or delivery. This includes aggregates of various sizes, sand, and other materials. A well-organized stockpiling system ensures efficient handling and distribution of the final products.

7. Washing and Screening: Depending on the requirements of the final product, some quarry crushing plants may include additional stages like washing and screening. This is particularly relevant in producing high-quality construction materials, such as aggregates or concrete sand.

By following this general flow chart, quarry operators can optimize their crushing plant's efficiency and productivity. It helps them identify potential bottlenecks and make necessary adjustments to improve the overall process. Additionally, having a clear flow chart also assists in training new employees and ensuring everyone involved in the operation understands their roles and responsibilities.

All in all, a well-designed flow chart is an essential tool in quarry crushing plant operations. It simplifies the complex rock crushing process and allows quarry operators to visualize and understand each stage better. By following a comprehensive flow chart and incorporating the necessary components, quarry operators can streamline their operations and maximize their productivity.
